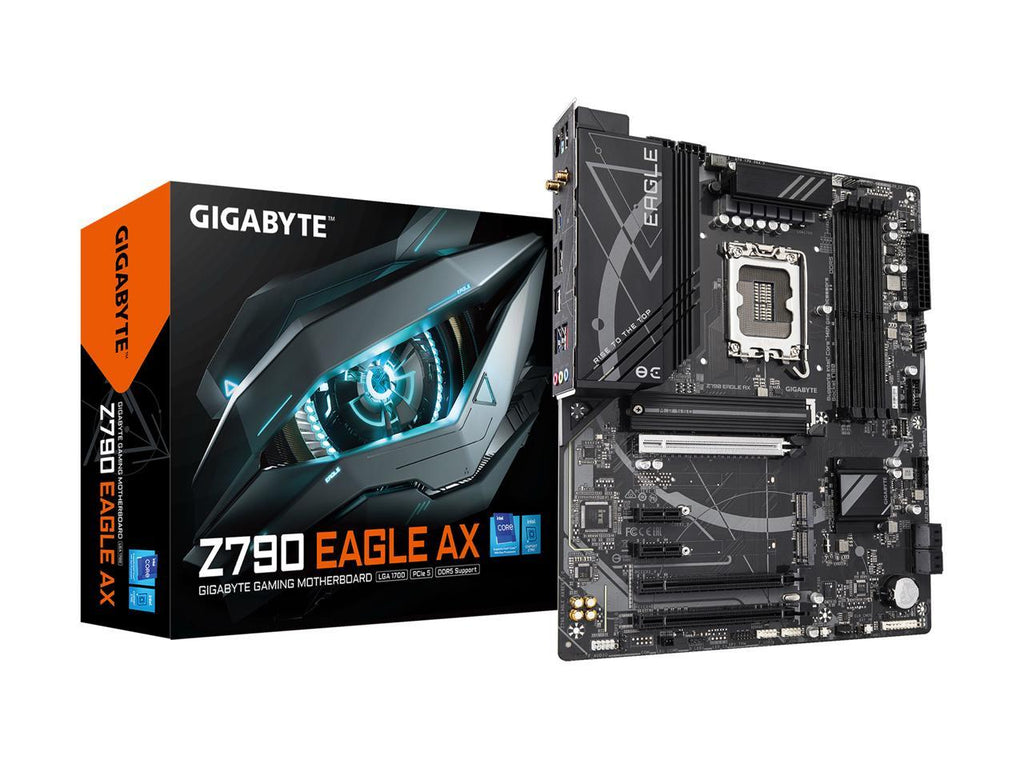

GIGABYTE Z790 EAGLE AX LGA 1700 Intel Z790 ATX Motherboard with DDR5, M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch
GIGABYTE Z790 EAGLE AX LGA 1700 Intel Z790 ATX Motherboard with DDR5, M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch
GIGABYTE Z790 EAGLE AX LGA 1700 Intel Z790 ATX Motherboard with DDR5, M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch
GIGABYTE Z790 EAGLE AX LGA 1700 Intel Z790 ATX Motherboard with DDR5, M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch

    GIGABYTE Z790 EAGLE AX LGA 1700 Intel Z790 ATX Motherboard with DDR5, M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch

    QAR 899.00
    Brand GIGABYTE
    Model Z790 EAGLE AX
    Supported CPU
    CPU Socket Type  LGA 1700
    CPU Type Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold
    Chipsets
    Chipset  Intel Z790
    Memory
    Number of Memory Slots 4x288pin (DDR5)
    Memory Standard DDR5 5600
    Maximum Memory Supported 192GB
    Channel Supported  Dual Channel
    Memory Feature Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Expansion Slots
    PCI Express 5.0 x16 CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    PCI Express 4.0 x16 Chipset:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    PCI Express 3.0 x16 Chipset:
    - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
    PCI Express x1 Chipset:
    - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
    Storage Devices
    SATA 6Gb/s  4 x SATA 6Gb/s
    M.2 CPU:
    - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
    SATA RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    Additional RAID Controller RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    Onboard Audio
    Audio Channels  7.1 Channels
    Onboard LAN
    Max LAN Speed 2.5Gbps
    Wireless LAN Wi-Fi 802.11 ax
    Bluetooth BLUETOOTH 5.3
    Rear Panel Ports
    Back I/O Ports 1 x PS/2 keyboard/mouse port
    1 x USB Type-C port, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 2 Type-A port (red)
    4 x USB 3.2 Gen 1 ports
    2 x USB 2.0/1.1 ports
    2 x SMA antenna connectors (1T1R)
    1 x HDMI port
    1 x DisplayPort
    1 x RJ-45 port
    3 x audio jacks
    Internal I/O Connectors
    Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    Other Connectors 1 x CPU fan header
    1 x CPU fan/water cooling pump header
    3 x system fan headers
    1 x system fan/water cooling pump header
    2 x addressable LED strip headers
    3 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    2 x Thunderbolt add-in card connectors
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x reset button
    1 x Q-Flash Plus button
    1 x reset jumper
    1 x Clear CMOS jumper
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    Windows Compatibility
    Windows 11 Supported
    Features
    Features Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup
